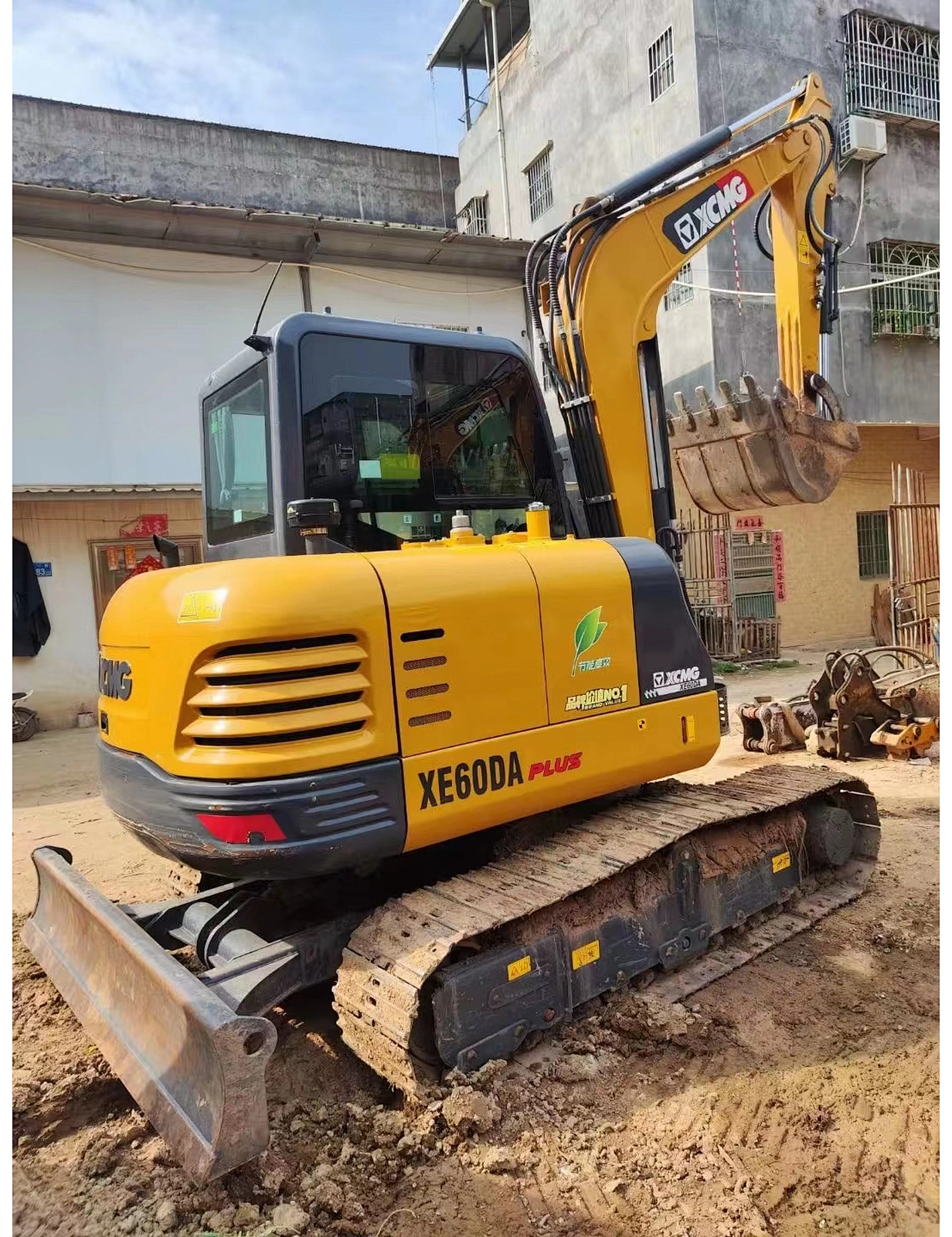

XCMG XE60DA excavator adopts a new environment-friendly engine, featuring high low-speed torque, low fuel consumption, high operating efficiency, reliability and durability. XCMG 60 excavator      optimizes the layout of air inlet pipeline, reduces air inlet resistance, increases air inlet volume and improves fuel utilization.
XCMG 60 excavator performance
Slewing speed (rpm) 10
Traveling speed (km/h) 4.2/2.4
Gradeability (%) 35
Ground specific voltage (Kpa) 32.5
Bucket digging force (kN) 48.3
Stick digging force (kN) 32.5
Maximum traction force (kN) 50.5
XCMG XE60DA excavatordynamic system
Engine model 4TNV94L
Rated power (kw/rpm) 36.2/2100
Maximum torque (N.m) 207.4/1000
Number of cylinders (4)
Cooling mode Water cooling
Working mode: direct injection, 4-stroke
XCMG XE60DA excavator /XCMG 60 excavator Oil capacity
Fuel tank (L) 110
Hydraulic oil tank (L) 85
Engine oil change quantity (L) 12
XCMG XE60DA excavator/ XCMG 60 excavator Main body size
Total transportation length (mm) 5860
Total transport width (mm) 1920
Total transport height (mm) 2585
Track shoe width (mm) 400
Track gauge (mm) 1500
Minimum ground clearance (mm) 385
Ground clearance of counterweight (mm) 700
Minimum turning radius of front working device (mm) 2460
Center distance of roller (mm) 1990
Maximum height at minimum turning radius (mm) 1670
XCMG XE60DA excavator/XCMG 60 excavator Scope of work
Maximum excavation radius (mm) 6130
Maximum excavation depth (mm) 3830
Maximum excavation height (mm) 5630
Maximum unloading height (mm) 3945
Maximum vertical excavation depth (mm) 2680
