Komatsu pc200-7
PC200-7

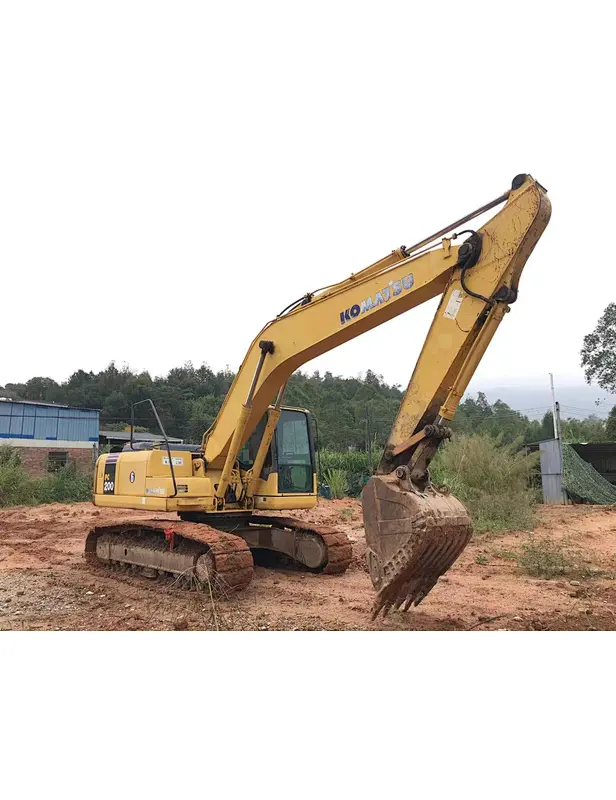

Komatsu PC200-7 excavator parameter configuration
Specifications
Operating weight (kg) 20253
Bucket capacity (m ³) zero point eight
Stick length (mm) 1840/2410
Origin Japan
Tonnage (ton) 20
Bucket Backhoe
Manufacturer joint venture/import
Power Traditional power
Bucket Backhoe
Specifications
Operating weight (kg) 20253
Bucket capacity (m ³) zero point eight
Stick length (mm) 1840/2410
Origin Japan
Tonnage (ton) 20
Bucket Backhoe
Manufacturer joint venture/import
Power Traditional power
Bucket Backhoe
Quantity
Performance of Komatsu pc200-7 excavator
Traveling speed (km/h) 12.4
Bucket digging force (kN) 149
Stick digging force (kN) 145
dynamic system(Komatsu hydraulic excavator)
Engine model Komatsu SAA6D102E-2
Rated power (kw/rpm) 107
Displacement (L) 5.883
Cylinder bore × Stroke (mm) 102 × one hundred and twenty
Cooling mode Water cooling
Working mode: 4-stroke, water-cooled, direct injection
Hydraulic system
Main pump type Variable piston pump
Maximum flow of main pump (l/min) 2 * 214
Traveling hydraulic circuit (Mpa) 37.3
Rotary hydraulic circuit (Mpa) 28.9
Control hydraulic circuit (Mpa) 3.2
Oil capacity(Komatsu pc200-7 excavator)
Fuel tank (L) 400
Hydraulic oil tank (L) 143
Engine oil change quantity (L) 24
Coolant (L) 22.4
Main body size(Komatsu pc200-7 excavator)
Total transportation length (mm) 9480
Total transport width (mm) 3000
Total transport height (mm) 2985
Overall height of cab (mm) 2095
Track grounding length (mm) 3270
Total length of track (mm) 4080
Track shoe width (mm) 600
Total track width (mm) 3000
Komatsu pc200-7 excavator, made in China and imported from Japan, welcome to order!Komatsu pc200-7 excavator is the leader of Komatsu pc200 machinery. The machine has beautiful appearance and soft lines. You will like it at a glance, but under its soft appearance, there is a strong explosive force. The working force is even and fast, making you unconsciously like it!
